₹70,000
Our highest capacity single phase machine. A 100 ft rope and 500 kg capacity make it the right choice for taller buildings and long working days.
Warranty
Invoice
Site setup
Min. order
தயாரிப்பு வீடியோ
பயன்பாடு
நிறுவுதல்
| Machine, Motor, Rope, Frame and Supply | |
| Load capacity | 350 – 500 kg |
|---|---|
| Motor power | 2 HP |
| Motor type | Single phase |
| Winding | Copper |
| Rotation | 360 degree |
| Rope length | 100 ft |
| Rope thickness | 10 mm |
| Working height | Up to 9 floors |
| Power supply | 230 V single phase |
| Panel board | Standard |
| Trolley option | Rs 5,000 double wheel |
| Warranty | 1 year |
| Country of origin | Made in India |

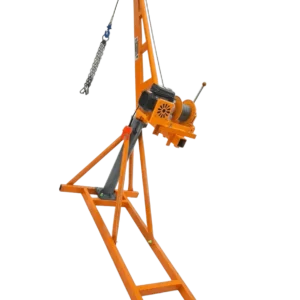

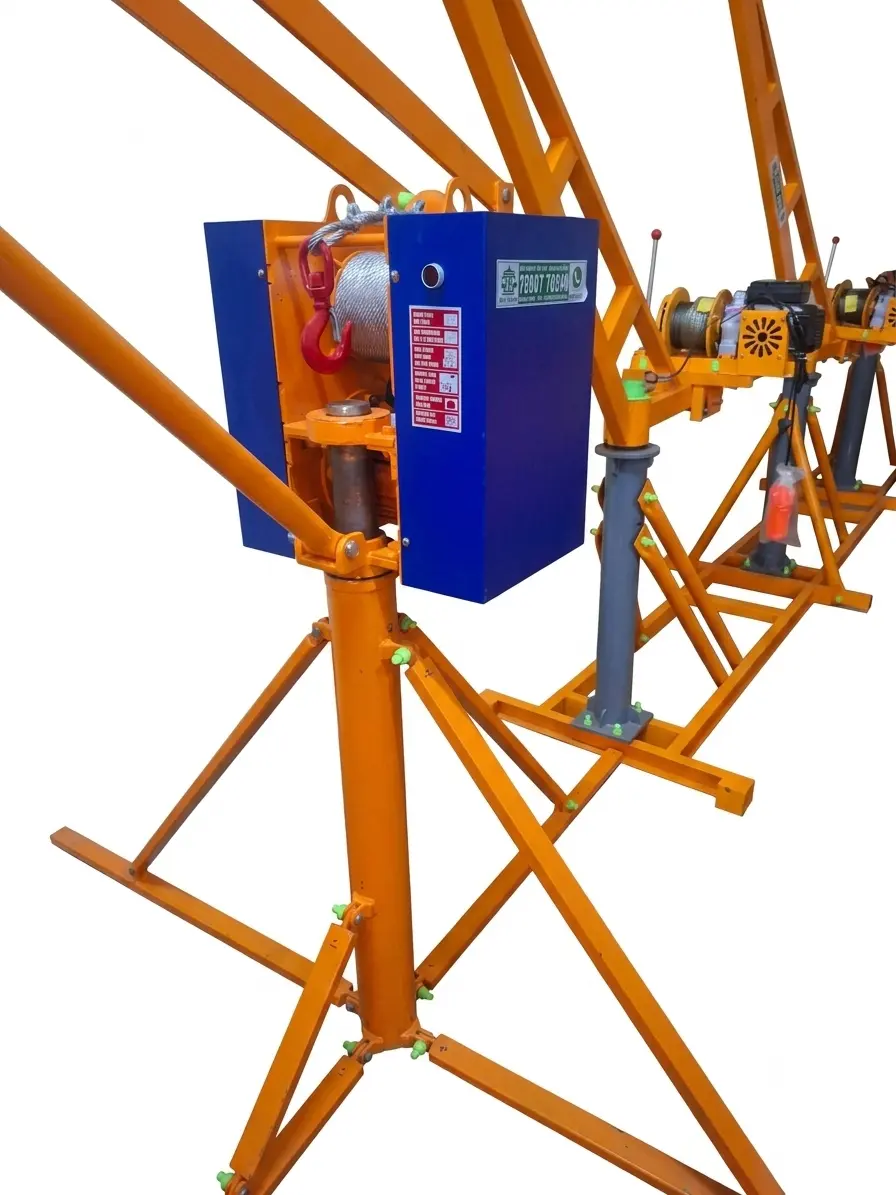

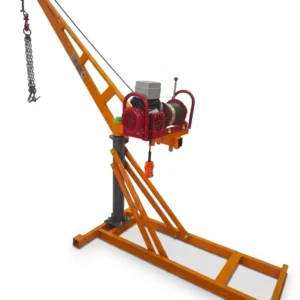

| Specification | A Type | A1 Type | B Type | B1 Type | C Type |
|---|---|---|---|---|---|
| Load capacity | 350-500 kg | 450-500 kg | 200-250 kg | 200-250 kg | 150 kg |
| Motor power | 2 HP | 3 HP | 5 HP | 5 HP | 2 HP |
| Motor type | Single phase | Three phase | Single phase | Single phase | Single phase |
| Working height | 9 floors | 9 floors | 5 floors | 5 floors | 3 floors |
| Rope length | 100 ft | 30 metre | 30 metre | 30 metre | 30 metre |
| Price | Rs 70,000 | Rs 62,000 | Rs 55,000 | Rs 58,000 | Rs 43,000 |
Swipe the table to compare. Prices include GST.
| Material trolley, double wheel | Rs 5,000 |
|---|---|
| Additional wire rope, per metre | On request |
| Spare pulley assembly | On request |
| Replacement pendant switch | On request |
| Transport to site | At actuals |
DELIVERY
2 to 7 Days
Dispatched from Ambur across Tamil Nadu, Kerala and Karnataka. Transport charged at actuals by distance. We help set the machine up on site.
PAYMENT
Advance and Balance
Part advance confirms the order, balance before dispatch. Full GST invoice with every machine. Bank transfer or UPI accepted.
WARRANTY
1 Year Written
Covers manufacturing defects on motor, gearbox and structure. Spares stocked at the factory, service support well beyond the warranty period.
